Product on sale

B840M EAGLE WIFI6

Original price was: EGP6,950.Current price is: EGP6,450.

4 products sold in last 10 hours
Selling fast! Over 3 people have in their cart
26 people are viewing this right now
  • Check Mark Estimated Delivery : Up to 4 business days
  • Check Mark Free Shipping & Returns : On all orders over 5000 EGP
  • Visa Card
  • MasterCard
  • American Express
  • Discover Card
  • PayPal
  • Apple Pay
Guaranteed Safe And Secure Checkout

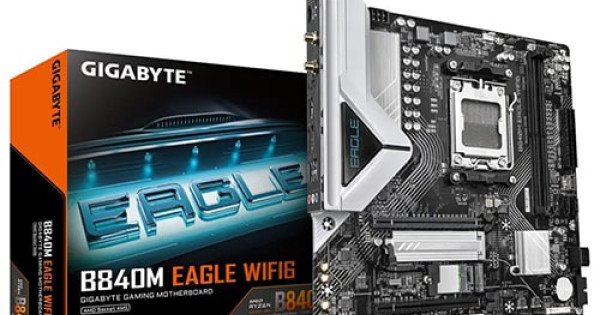

B840M EAGLE WIFI6

  • CPU
    AMD Socket AM5, support for:
    AMD Ryzen™ 9000 Series Processors/
    AMD Ryzen™ 8000 Series Processors/
    AMD Ryzen™ 7000 Series Processors
    (Go to GIGABYTE’s website for the latest CPU support list.)
  • Chipset
    AMD B840
  • Memory
    Support for DDR5 7600(O.C.) / 7200(O.C.) / 7000(O.C.) / 6800(O.C.) / 6600(O.C.) / 6400(O.C) / 6200(O.C) / 6000(O.C) / 5800(O.C) / 5600(O.C) / 5200 / 4800 / 4400 MT/s memory modules.
    2 x DDR5 DIMM sockets supporting up to 128 GB (64 GB single DIMM capacity) of system memory
    Dual channel memory architecture
    Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
    Support forAMD EXtended Profiles for Overclocking (AMD EXPO™) and Extreme Memory Profile (XMP) memory modules (The CPU andmemory configurationmay affect the supportedmemory types, data rate (speed), and number of DRAM modules, please refer to “Memory Support List” on GIGABYTE’s website for more information.)
  • Onboard Graphics
    Integrated Graphics Processor with AMD Radeon™ Graphics support:
    – 1 x DisplayPort, supporting a maximum resolution of 3840×2160@144 Hz
    * Support for DisplayPort 1.4 version and HDR.- 1 x HDMI port, supporting a maximum resolution of 4096×2160@60 Hz
    * Support for HDMI 2.1 version, HDCP 2.3, and HDR.
    ** Support for native HDMI 2.1 TMDS compatible ports.

    (Graphics specifications may vary depending on CPU support.)

  • Audio
    Realtek® Audio CODEC
    High Definition Audio
    2/4/5.1/7.1-channel
    * You can change the functionality of an audio jack using the audio software. To configure 7.1-channel audio, access the audio software for audio settings.
  • LAN
    Realtek® 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps)
  • Wireless Communication module
    Realtek® Wi-Fi 6 RTL8851BE
    – WIFI a, b, g, n, ac, ax, supporting 2.4/5 GHz carrier frequency bands
    – BLUETOOTH 5.3
    – Support for 11ax 80MHz wireless standard
    (Actual data rate may vary depending on environment and equipment.)
  • Expansion Slots
    1 x PCI Express x16 slot (PCIEX16), integrated in the CPU:
     AMD Ryzen™ 9000/7000 Series Processors support PCIe 4.0 x16 mode
     AMD Ryzen™ 8000 Series-Phoenix 1 Processors support PCIe 4.0 x8 mode
     AMD Ryzen™ 8000 Series-Phoenix 2 Processors support PCIe 4.0 x4 mode
    * The PCIEX16 slot can only support a graphics card or an NVMe SSD. If only one graphics card is to be installed, be sure to install it in the PCIEX16 slot.Chipset:
    – 1 x PCI Express x16 slot, supporting PCIe 3.0 and running at x4 (PCIEX4)

  • Storage Interface
    1 x M.2 connector (M2A_CPU), integrated in the CPU, supporting Socket 3, M key, type 2580/2280 SSDs:
     AMD Ryzen™ 9000/7000 Series Processors support PCIe 4.0 x4/x2 SSDs
     AMD Ryzen™ 8000 Series-Phoenix 1 Processors support PCIe 4.0 x4/x2 SSDs
     AMD Ryzen™ 8000 Series-Phoenix 2 Processors support PCIe 4.0 x4/x2 SSDs1 x M.2 connector (M2C_SB), integrated in the Chipset, supporting Socket 3, M key, type 2280 PCIe 3.0 x2 SSDs
    4 x SATA 6Gb/s connectors
    RAID 0, RAID 1, RAID 5, and RAID 10 support for NVMe SSD storage devices
    * RAID 5 is only available on AMD Ryzen™ 9000 Series Processors.

    RAID 0, RAID 1, and RAID 10 support for SATA storage devices

  • USB
    CPU:
    – 2 x USB 3.2 Gen 1 ports on the back panel
    CPU+USB 2.0 Hub:
    – 4 x USB 2.0/1.1 ports on the back panel
    Chipset:
    – 1 x USB Type-C® port with USB 3.2 Gen 1 support, available through the internal USB header
    – 2 x USB 3.2 Gen 1 ports available through the internal USB headers
    – 4 x USB 2.0/1.1 ports available through the internal USB headers
  • Internal I/O Connectors
    1x 24-pin ATX main power connector
    1 x 8-pin ATX 12V power connector
    1 x CPU fan header
    1 x CPU fan/water cooling pump header
    1 x system fan header
    1 x system fan/water cooling pump header
    2 x addressable RGB Gen2 LED strip headers
    1 x RGB LED strip header
    2 x M.2 Socket 3 connectors
    4 x SATA 6Gb/s connectors
    1 x front panel header
    1 x front panel audio header
    1 x USB Type-C® header, with USB 3.2 Gen 1 support
    1 x USB 3.2 Gen 1 header
    2 x USB 2.0/1.1 headers
    1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0/GC-TPM2.0 SPI V2 module only)
    1 x reset jumper
    1 x Clear CMOS jumper

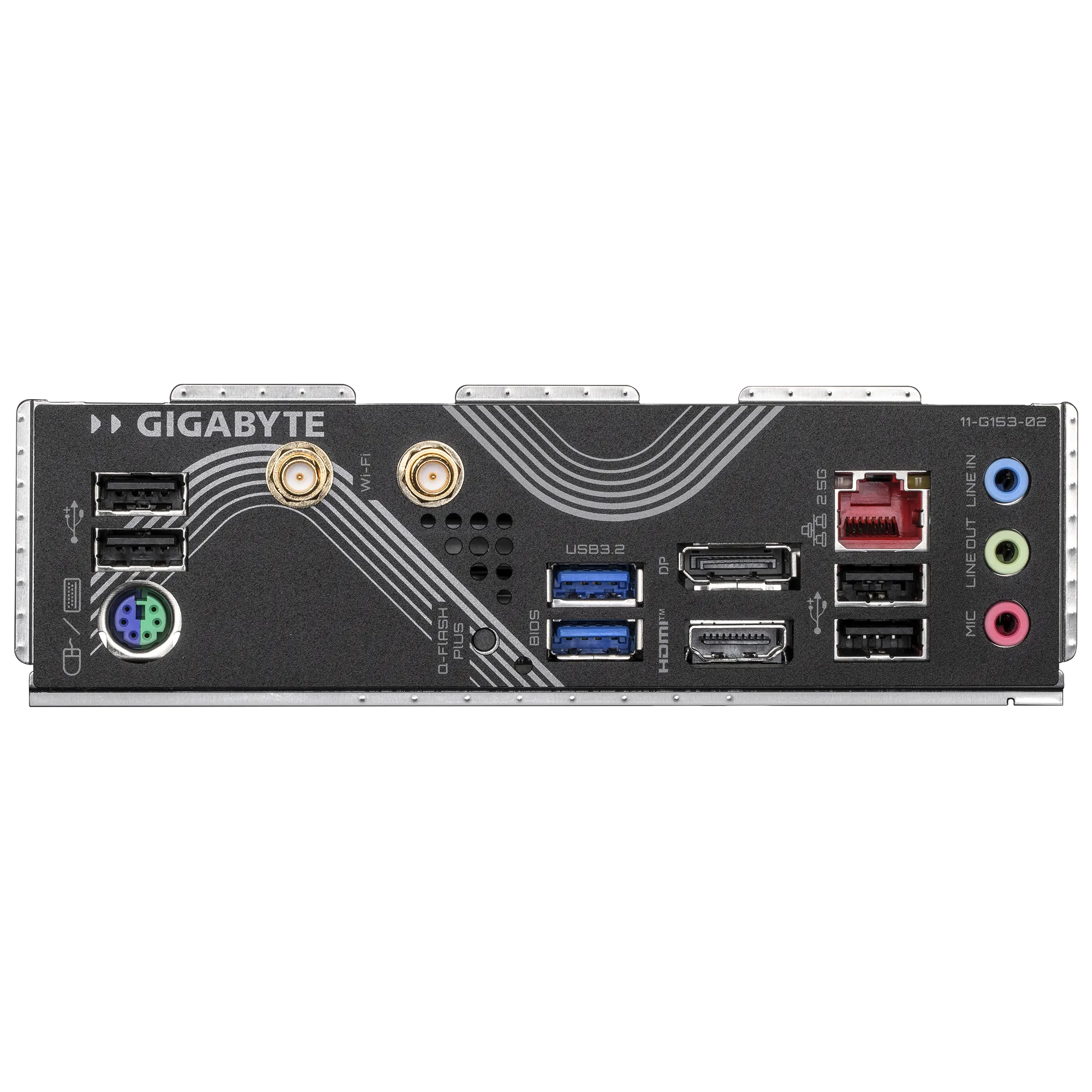

  • Back Panel Connectors
    1 x PS/2 keyboard/mouse port
    4 x USB 2.0/1.1 ports
    1 x DisplayPort (Note)
    1 x HDMI port (Note)
    1 x Q-Flash Plus button
    2 x USB 3.2 Gen 1 ports
    1 x RJ-45 port
    2 x SMA antenna connectors (2T2R)
    3 x audio jacks(Note) Actual support may vary by CPU.

  • I/O Controller
    iTE® I/O Controller Chip
  • H/W Monitoring
    Voltage detection
    Temperature detection
    Fan speed detection
    Water cooling flow rate detection
    Fan fail warning
    Fan speed control
    * Whether the fan (pump) speed control function is supported will depend on the fan (pump) you install.
  • BIOS
    1 x 256 Mbit flash
    Use of licensed AMI UEFI BIOS
    PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
  • Unique Features
    Support for GIGABYTE Control Center (GCC)
    * Available applications in GCC may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.Support for Q-Flash
    Support for Q-Flash Plus
    Support for Smart Backup

  • Bundled Software
    Norton® Internet Security (OEM version)
    LAN bandwidth management software
  • Operating System
    Support for Windows 11 64-bit
    Support for Windows 10 64-bit
  • Form Factor
    Micro ATX Form Factor; 24.4cm x 24.4cm
